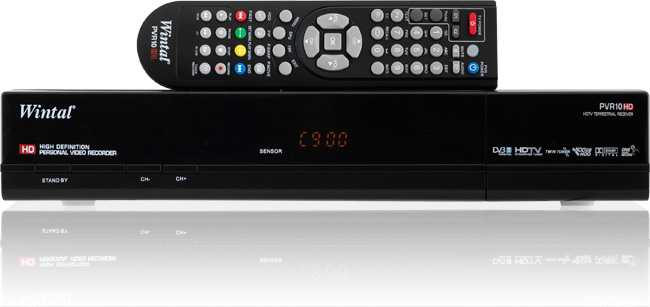

Wintal TWIN TUNER High Definition HD PVR 500Gb HDD Model: PVR10HD
No warranty for the accuracy of product image or description.
Item code WintalPVR
Stock 14
Price $365.00
Starting from: 2 pieces $340.00
Email to a Friend
Seller: admin
Feedback: There are currently no ratings.

Twin Tuner HD + 2 Source Personal Video Recorder | 500GB HDD

The PVR10HD is a high definition digital set top box with a built-in 500GB hard disk allowing you to record many hours of high quality digital television. Two genuine HD tuners make it possible to record one or two channels simultaneously and watch a previously recorded program at the same time. It is also the first Wintal to feature the unique 2 additional source inputs, allowing you to connect external sources like DVD players, VCRs or cable TV and having the luxury of viewing and recording these sources as if they were just another television channel!

With the majority of TV channels in Australia starting to heavily broadcast in HD and with more and more devices, the PVR10HD is the simple solution for all your SD and HD digital television needs. Download the Wintal PVR10HD User Manual (3.3Mb PDF).

Wintal TWIN TUNER High Definition HD PVR 500Gb HDD Model: PVR10HD

High definition picture and sound

  • Integrated MPEG2/ H.264 HD decoder
  • Watch crystal clear free-to-air television in stunning high definition
  • 1080i HD output via the HDMI output
  • Dolby 5.1 channel AC-3 Audio decoding // Watch your favourite shows in 5.1ch surround sound!
  • Automatic downmix of 5.1ch AC3 to two channels encoded with Dolby Prologic Surround
  • Get digital audio output via the optical rear port to connect to your AV receiver

Record two channels simultaneously

  • The PVR10HD's genuine twin tuners allow you to record2 shows simultaneously and also watch a third pre-recorded program or a third live sub-channel (ABC2, SBS2 etc.)

Record to built-in 500GB SATA hard drive or external USBdrives

  • Record and store a massive 350 hours SD or 115 hoursHD digital television on the in-built hard drive*
    Based on 1.3gbps for SD streams and 3-4gbps for HD streams
  • Faster buffering and operating times compared to larger hard drives
  • Record to any FAT32 formatted external drive via thefront or rear USB ports
  • Export and share your recordings via the front or rear USB ports. Simply plugin your external drive and copy your files over!

2x External AV source record

  • Two rear AV inputs allow you to hook up any external AV source.
  • View directly from the channel list or record to the internal hard drive or external hard drive

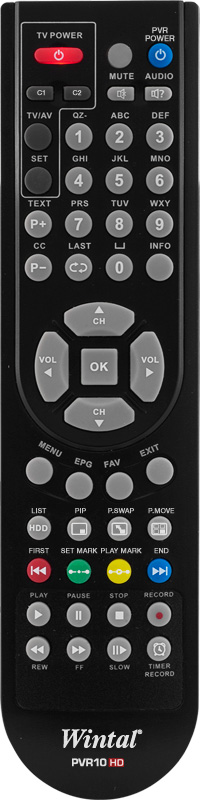

IR Learning remote control

Wintal TWIN TUNER High Definition HD PVR 500Gb HDD Model: PVR10HD

Wintal's One Remote - No extra remote controls

  • The PVR10HD remote has four "learning" keys that can mimic IR commands from your other devices. For example, you can turn on your TV and using the Custom 1 (C1)and Custom 2 (C2) buttons, adjust the volume from your AV receiver using the PVR10HD remote.
  • The Wintal free support number is also on the back of every remote control, meaning we'll be close at hand if you run into trouble!

Front and rear USB2.0 ports

  • Playback your MP3 audio files and JPG slideshows from your mp3 player, camera, recorder etc.
  • USB2.0 host connectivity

Low power consumption

  • The PVR10HD is MEPS (Minimum Energy Performance Standards) compliant, meaning it consumes less than 1 watt of power during stand-by
  • 12 V DC external power supply keeps the PVR10HD running cool


Wintal TWIN TUNER High Definition HD PVR 500Gb HDD Model: PVR10HD

  • 1080i HDMI Output
    The high definition multimedia interface output allows a single cable to transmit the highest digital audio and video to your TV, AV receiver, or any other HDMI enableddevice.

  • PVR features:
    • Time-shifting
      The PVR10HD has a built-in timeshift bufferof one hour allowing you to pause, rewind and playback live tv.
    • Chase Play
      Allows you to start watching a recording that is already in progress without having to wait for the program to finish recording in order to watch it.
    • Time Slip
      Allows you to play a previously recorded program while simultaneously recording a live broadcast.
    • 7 day EPG Schedule recordings // Electronic Programme Guide
      Set and forget: schedule your favourite TV shows for once, daily, or weekly recordings and see up to 7 days of upcoming programs and view more information on the current program.

  • PIP - Picture-in-Picture
    Watch one channel while keeping an eye out on another channel.

  • Future Proof - Rear Ethernet port that will receive MHEG-5 broadcasts once it becomes available in Australia make your PVR10HD as future proof as possible. MHEG-5 provides interactive/hybrid services beyond broadcast TV and also allows for EPG data to be transmitted via the internet.
  • 4:3 standard or 16:9 widescreen display options

  • Easy to use
    • The software on the PVR10HD has been developed with ease of use in mind. All options and menu items have been laid out logically and conveniently.
    • The auto-setup wizard automatically scans for all available channels

  • Channel edit functions:
    • Supports up to 5000 channels
    • Fast channel change
    • 8 favourites channel lists
    • Move, delete, lock channel functions

  • Teletext/ Closed captions

  • 32bit OSD (On Screen Display)

  • Software upgradeable via RS-232

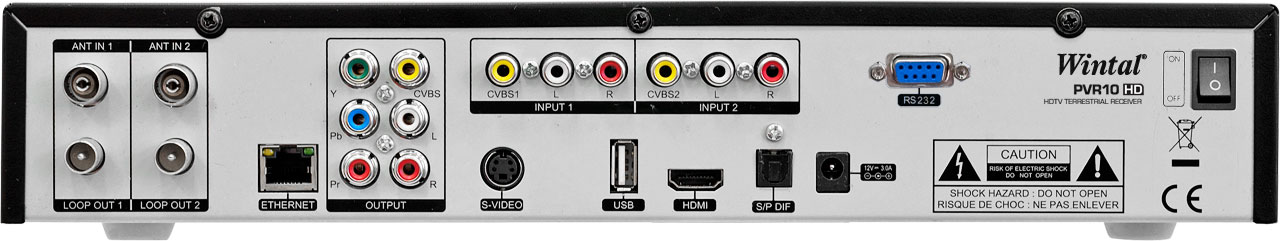

  • Outputs:
    • High definition outputs
      • 1x HDMI (1080i/ 720p/ 576p)
      • 1x Component (YPbPr) (1080i/ 7520p/ 576p)
    • S-Video out
    • Composite AV Out
    • 2x RF out (Loop out)
    • S/PDIF optical out

  • Inputs:
    • 2x RF in
    • 2x Composite AV inputs for two external sources
    • 9-pin RS-232 in (for software upgrades)
    • RJ45 ethernet port
    • Front - USB2.0 port
    • Rear - USB2.0 port


    • 1 x User Manual
    • 1x stereo AV lead
    • 1 x Remote Control Unit
    • 2 x AAA Batteries
    • 1 x RF Male to RF Female Cross Cable
    • 12 months Australian Warranty


Input Frequency: 174~230MHz,474~858MHz
Loop output: 174~230MHz,474~858MHz
Standard: DVB-T
Demodulation: 16QAM 64QAM
Bandwidth: 8M
Standard: MP@HL/ML, H.264 HD
Video Resolution: 1920x1080p,1920x1080i,1280x720P,720x576p
Standard: ISO/IEC 13818-3 TR101154
Audio format: MPEG1 &MPEG-2 layer I and II
Audio Mode: Left channel, Right channel, Stereo
Sampling Frequency: 32, 44.1, 48KHz
Flash memory: 16MB
DDR2 memory: 256 MB
Output Format: 1080i,720p, 576p
Output Connector: HDMI/ YPbPr

Tuner 1: IEC-type, Tuner 2 :IEC-type, RCA output:1 Left,1 Right,1 Video
YPbPr, S-Video, S/PDIF optical, HDMI 1.3a, USB HOST 2.0, LAN: RJ45, RS-232

IR Receiver: 38KHz
Panel keys: Standby, CH- / CH+
USB Host 2.0
Input Voltage: DC 12V
Power Consumption: 36W max.
Operation Temperature: 0 ~ 40°C
Size: 360 x 250 (D) x 60 (H) mm
Weight: 3.3kg (inc. HDD)

*Recording times are estimates and will greatly vary depending on content

Note: Download the free, multi-format KMPlayer if you wish to playback your recordings on your PC.
